OConnor Ultimate 2560 Fluid Head & 60L 150mm Bowl Tripod with Floor Spreader

OConnor Ultimate 2560 Fluid Head & 60L 150mm Bowl Tripod with Floor Spreader

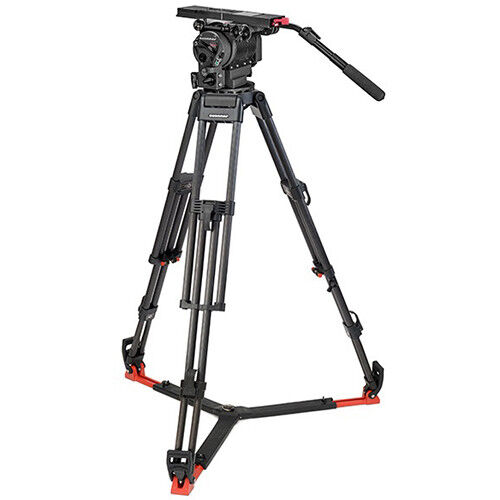

The Ultimate 2560 Fluid Head & 60L Tripod from OConnor includes the Ultimate 2560 fluid head package, 60L two-stage tripod system with a 150mm bowl and a floor spreader. The fluid head is capable of supporting camera payloads up to 30kg at a 15cm centre of gravity above the platform, and offers a ± 90° tilt range. The fluid head package comes with a 30cm pan handle with 30° bend and 29cm pan handle extension. It also comes packaged with both a Mitchell base and 150mm ball base with tiedowns for expanded tripod compatibility.

The 60L tripod weighs just 4.08kg and has a double extension design that is safe and stable while carrying payloads up to 95kg, even at its maximum height of 154cm. This lightweight tripod with 150mm bowl collapses down to 76cm for easy transport. The floor spreader holds the tripod legs in position, providing rigidity and stability to the overall system.

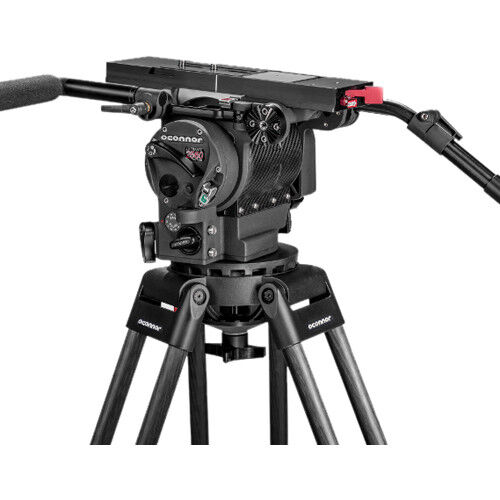

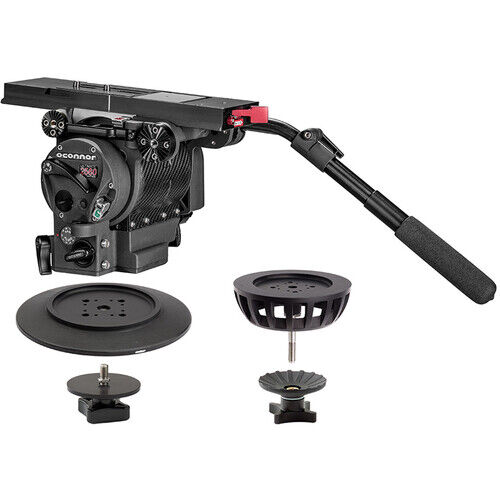

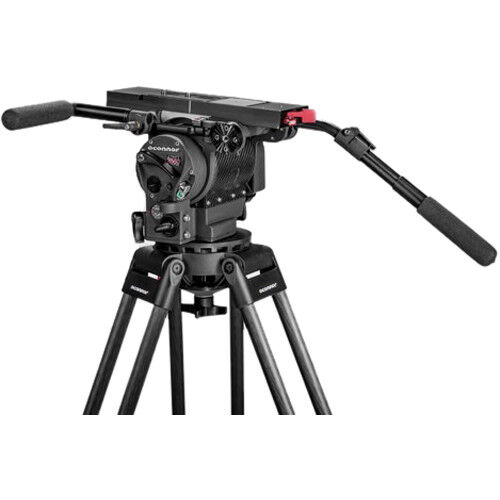

The Ultimate 2560 Fluid Head Package from OConnor is designed for use with the current crop of digital cinema cameras. Weighing less than 8.1kg, 2560 is capable of supporting camera payloads up to 30kg at a 15cm centre of gravity above the platform, making it well suited for cameras such as the ARRI Alexa in a portable configuration or any lightweight digital cinema camera in a full studio configuration. The head comes packaged with both a Mitchell base and a 150mm ball base adapters with tie-downs for expanded tripod compatibility. It also comes with a large Euro-style quick release for rapid mounting and dismounting of large camera rigs, a pan handle and a pan handle extension.

Crafted for cine-style shooting, the head design delivers cinema standard positioning of controls, including brakes and rosettes, for easy and intuitive use. The 2560 fluid head also features OConnor's patented sinusoidal counterbalance system for accurate balance at any point in the tilt range. In combination with the step-less, smooth pan and tilt fluid drag, the 2560 delivers control and stability for digital cinema shooters.

• Supports up to 30kg at 15cm centre of gravity above the platform
• Magnesium frame and carbon fibre cover keeps weight under 8.1kg
• Cinema standard positioning of controls, including brakes and rosettes
• Sinusoidal counterbalance system
• Stepless pan and tilt fluid drag
• Mitchell base and 150mm ball base adapter with tie-downs
• Euro-style quick release
• Pan handle with pan handle extension

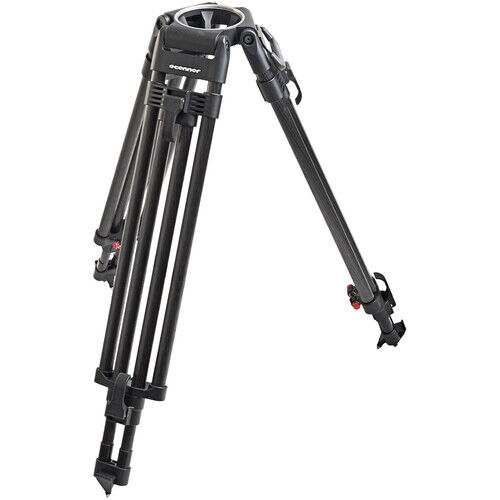

The OConnor 60L 2-Stage Carbon Fibre Tripod Legs with 150mm Bowl support tripod heads that have a 150mm leveling ball. The legs feature 2-stages and weigh only 4.08kg, however they can support 95kg and extend from a minimum height of 58cm to a maximum height of 154cm when using the available mid-level spreader.

Each leg extends or retracts independently and when detached from a spreader each leg can pivot without affecting the other legs. This is especially useful when working on rough or uneven terrain. The dual spikes at the end of each leg provide extra grip when working on soft ground and the design of the spikes also provide a solid mounting surface for the optional rubber feet/spike protectors.

The legs are designed to for use with an available mid-level spreader for stability on uneven terrain. It also features OConnor's smart quick clamping system that provides a visible clamp lockdown. A small accessory hook under the 150mm bowl allows you to hang various available tools and items such as a walkie talkie, tape measure or even a foam rubber pad for shouldering the legs during camera position changes.

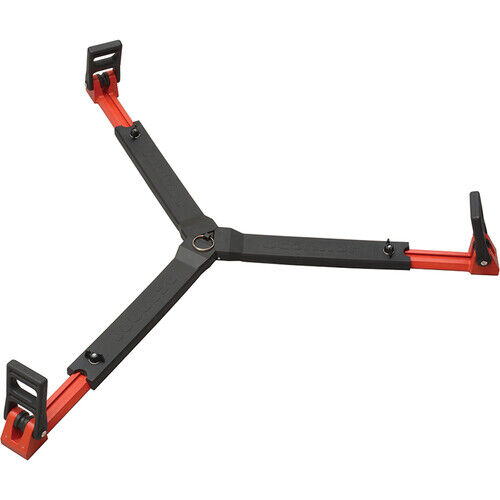

The Floor Spreader from OConnor is designed for use with a 30L or 60L OConnor tripod. The floor spreader is also compatible with all Sachtler 100 and 150 bowl tripods (excluding the DA 100 K, DA 150K, and Cine).

• Compatible with 30L and 60L OConnor tripods, as well as all Sachtler 100 and 150 bowl tripods (with exception of DA 100 K, DA 150K, and Cine)
• Adjustable spreader legs
