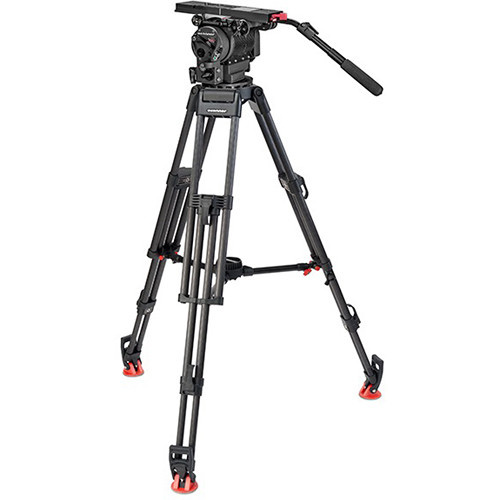

OConnor 2560 Head & 60L 150mm Bowl Tripod with Mid-Level Spreader

OConnor 2560 Head & 60L 150mm Bowl Tripod with Mid-Level Spreader

The Ultimate 2560 Fluid Head & 60L Tripod from OConnor includes the Ultimate 2560 fluid head package, 60L 2-stage tripod system with a 150mm bowl, a set of rubber feet and a mid-level spreader. The fluid head is capable of supporting camera payloads up to 30kg at a 15cm centre of gravity above the platform, and offers a ± 90° tilt range. The fluid head package comes with a 30cm pan handle with 30° bend and 29.5cm pan handle extension. It also comes packaged with both a Mitchell base and 150mm ball base with tiedowns for expanded tripod compatibility.

The 60L tripod weighs just 4.1kg and has a double extension design that is safe and stable while carrying payloads up to 95kg, even at its maximum height of 154cm. This lightweight tripod with 150mm bowl collapses down to 76cm for easy transport. The mid-level spreader holds the tripod legs in position, providing rigidity and stability to the overall system.

The Ultimate 2560 Fluid Head Package from OConnor is designed for use with the current crop of digital cinema cameras. Weighing less than 8.1kg, 2560 is capable of supporting camera payloads up to 30kg at a 15cm centre of gravity above the platform, making it well suited for cameras such as the ARRI Alexa in a portable configuration or any lightweight digital cinema camera in a full studio configuration. The head comes packaged with both a Mitchell base and a 150mm ball base adapters with tiedowns for expanded tripod compatibility. It also comes with a large Euro-style quick release for rapid mounting and dismounting of large camera rigs, a pan handle, and a pan handle extension.

Crafted for cine style shooting, the head design delivers cinema standard positioning of controls, including brakes and rosettes, for easy and intuitive use. The 2560 fluid head also features OConnor's patented sinusoidal counterbalance system for accurate balance at any point in the tilt range. In combination with the stepless, smooth pan and tilt fluid drag, the 2560 delivers control and stability for digital cinema shooters.

• Supports up to 30kg at 15cm centre of gravity above the platform
• Magnesium frame and carbon fiber cover keeps weight under 8.1kg
• Cinema standard positioning of controls, including brakes and rosettes
• Sinusoidal counterbalance system
• Stepless pan and tilt fluid drag
• Mitchell base and 150mm ball base adapter with tiedowns
• Euro-style quick release
• Pan handle with pan handle extension

The OConnor 60L Carbon Fibre Tripod System with 150 mm Bowl supports tripod heads that have a 150mm leveling ball. The legs feature 2-stages and weigh only 4.1kg, however they can support 94kg and extend from a minimum height of 58cm to a maximum height of 154cm when using the included mid-level spreader.

The mid-level spreader and individually adjustable legs allow you to set up a stable position on rocky, uneven terrain and even on stairs. The mid level spreader avoids the stresses and instability that a ground spreader can cause when working on uneven surfaces. When working situations require it, the spreader can be detached individually from each leg and the dual spikes at the end of each leg provide a solid anchor point when working on soft ground. The removable rubber feet snap onto the dual spikes for working inside or on slippery surfaces.

The system also features OConnor's smart quick clamping system that provides a visible clamp lockdown so you know your legs are secure. A small accessory hook under the 150mm bowl allows you to hang various available tools and items such as a small set bag or foam rubber pad for shouldering the legs during camera position changes.
