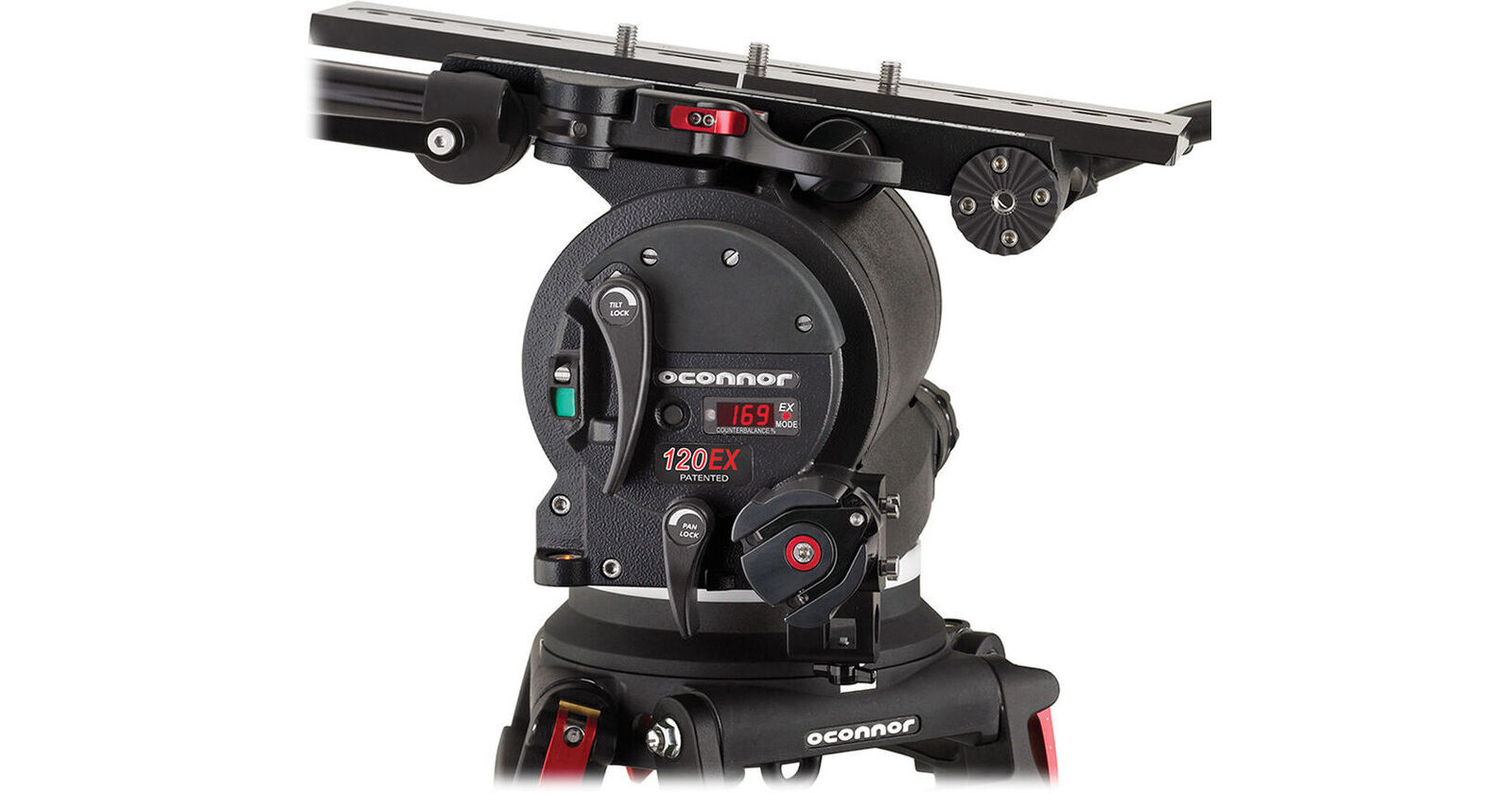

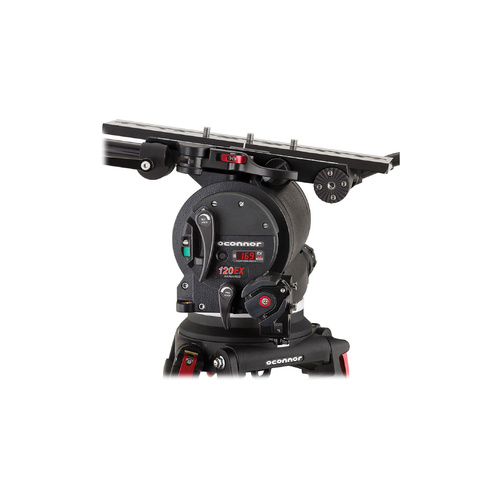

OConnor 120EX Standard Film Fluid Head

OConnor 120EX Standard Film Fluid Head

The OConnor 120EX Standard Film Fluid Head is the flagship of fluid head design. With a payload capacity of 109kg it is the right choice for larger format film and video cameras. This device features 90 to 90° tilt with a folding crank handle with numerical readout for repeatable counterbalance adjustments. This head features the EX Mode which allows extended weight capacity.

The fluid head features a counterbalance system that will keep the camera from falling forward or backward when it is tilted. With the correct counterbalance, the camera will stay where you put it, throughout the entire +/-90° tilt range.

Fluid drag allows you to pan and tilt smoothly, without shake or vibration. The high viscosity fluid acts as a buffer, adding an adjustable level of resistance to the camera movement.

The fluid head employs a modular design concept that allows you to choose different mounting bases (150mm, Mitchell, Sachtler/Vinten), quick release platforms (Oconnor, 120mm Euro, Panavision Dovetail and Arriflex Plates) and handles for added flexibility.

EX fluid heads can go far beyond that maximum payload by slowly limiting tilt range as the payload is increased. With the example of the 120EX, the payload for a 90° tilt range is between 14 - 54.4kg, but in EX mode the 120EX can counterbalance up to incredible 109kg at a tilt range of 60°; all based on a 8" centre of gravity.

• EX Mode Extended Capacity
• Counterbalance Crank Knob
• Adjustable Platform
• 54.4kg Capacity
• 109kg EX Capacity
