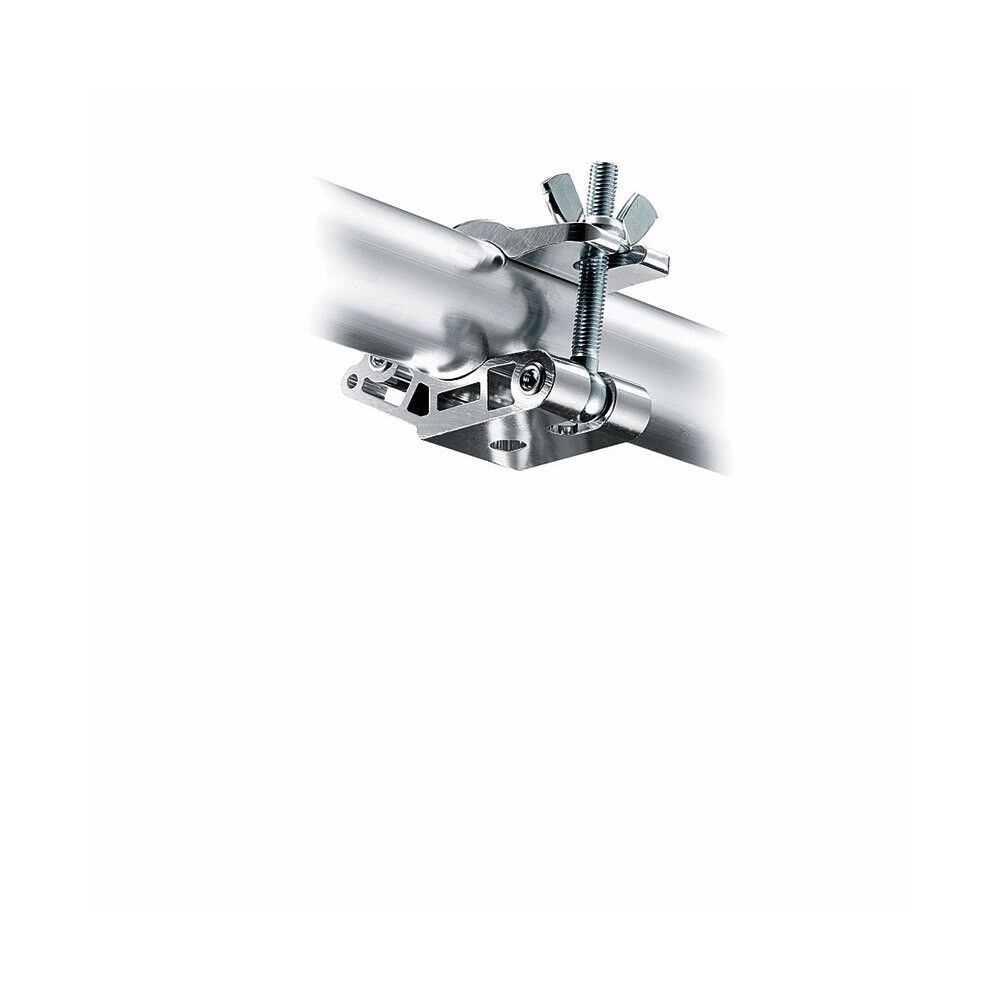

Avenger Eye Coupler MP Clamp with Wingnut, 42-52mm Ø

Avenger Eye Coupler MP Clamp with Wingnut, 42-52mm Ø

The Avenger Eye Coupler MP Clamp with Wingnut is the base model eye coupler designed for user customization. This popular MP cheeseboro clamp has a wider clamp range than the LP clamp and is ideal for many rigging systems, pipe grids, truss and entertainment configurations. Capable of holding up to 300kg. loads this clamp will perform in many demanding environments. The lower jaw has a special flattened shape which helps in the sizing of this clamp and the increased flexibility to clamp down on different types of tubing. It offers the user complete customization and the most flexibility for any application where a grid clamp is needed. The MP Eye Coupler uses a wing nut with washer locking design and is able to clamp down on round tubes, truss or grids ranging from 42 to 52mm and is 50mm wide. The attachment hole is 12.5mm and is located on the base of the clamp. TUV/SUD certified.

• Made from aluminium in silver finish
• Jaws clamp down on pipes ranging from 42 - 52mm
• Base model MP with non-threaded 12.5mm hole and is customizable
• Maximum Capacity 300kg
• TUV/SUD certified

Recommended Accessories : C155, FF3276, E390, C460-1, C463-1, C4460-1, C464-1, E200, C4465-1, C464-1
